Power gains of up to 100hp on a stock vehicle without the risks of flashing!

The JB4 is the most advanced and highly featured tuning system available for your B58 and B48 vehicle. Power gains are up to 80hp to the wheels (100hp crank) on a completely stock car on pump gas for a B58 and up to 40hp to the wheels (55hp crank) for a B48, gains with bolt-on parts, higher octane, E85 mixtures, and larger turbos are even higher.

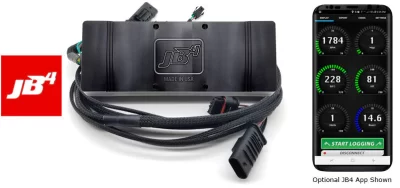

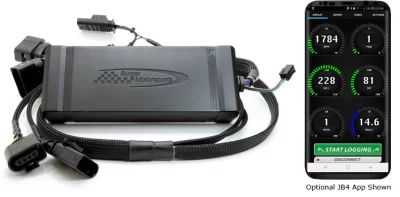

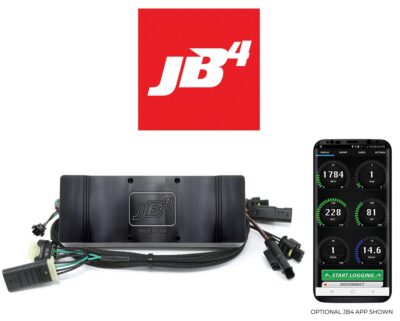

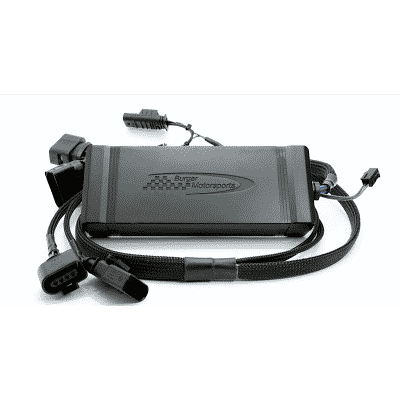

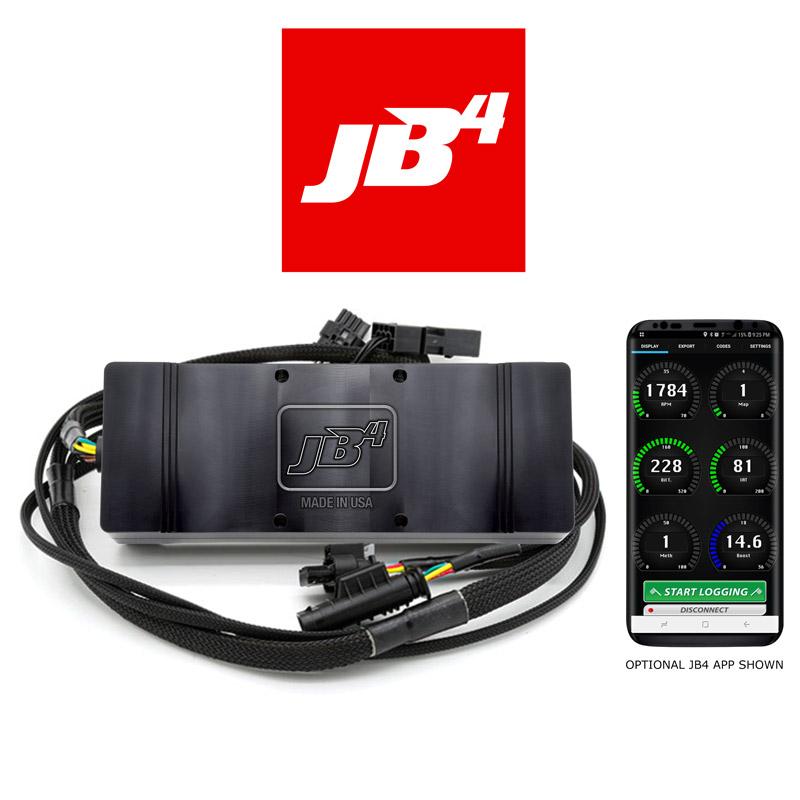

The JB4 features a simple plug and play installation harness for easy installation & removal and includes many features not found with any other tune. Including on the fly in dash map switching between factory and various performance maps, optional in-dash gauge displays for boost, boost limiting by gear for improved traction in lower gears, progressive water/methanol support, built-in data logging, built-in code reading, optional direct EWG control to prevent throttle closure with exhaust modifications, exhaust flapper control, and much more. Other more expensive tuners may claim to equal the JB4’s technology but upon closer examination lack most if not all of the JB4’s features.

Remember the JB4 does not require any additional modifications or previous stages. Simply install the JB4 as your first and only modification and enjoy an entirely new fast and smooth racing experience. The JB4 also does not require any user setup or customization but for those who are interested in logging, adding new features as we post them, etc, we suggest the BMS DATA cable or REV3 mobile phone adapter. The JB4 automatically detects between the B46, B48, and B58 models at boot up making installation and setup a snap.

JB4 Map Guide:

Map0: Stock tuning, fully disable JB4
Map1: 3psi over stock added (91 octane)
Map2: 4psi over stock added (91-93 octane)
Map3: 6psi over stock added (93+ octane)
Map4: Absolute target map with peak target of 20psi (93+ and/or 30% E85, EWG connector suggested)
Map5: Absolute target map with peak target of 22psi (30% E85+ fuel, EWG connector suggested)
Map6: Custom tuning map — see details on n54tech JB4 page
Map7: Progressive WMI map with tuning a function of meth flow and user defined boost additive.
Map8: VALET / Low Boost Map

Note for 2018+ G chassis vehicles with the digital dash layout we have not yet added in the JB4 commands to allow in-dash control but will provide those via a free firmware update once developed. Until then a JB4 mobile adapter or BMS data cable is required for any map and setting changes.

JB4_B58 is CARB Approved Under Executive Order (EO) No.D-744-4 for all 2016-2018 BMW 230i, 330i, 430i, 530i, 340i, 440i, 740i, M240i, and X1 applications.

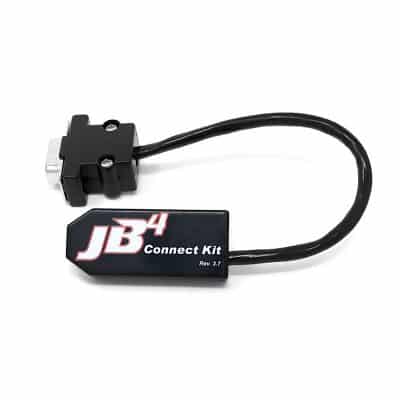

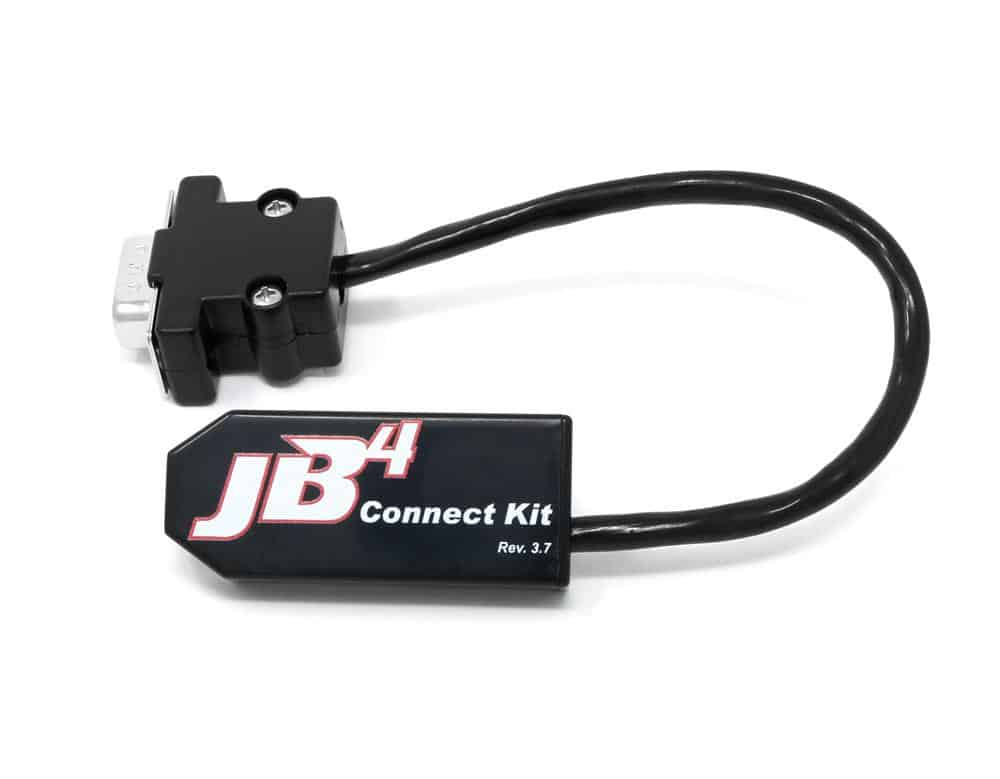

Wirelessly connect the JB4 to your Bluetooth 4.0 compatible iOS and Android device via the JB4 Mobile connect kit, or to your Windows laptop with the BMS data cable. Both options allow you to record and analyze vehicle and tuning data, change JB4 performance maps, and update JB4 firmware as we release free newer versions with updates, more powerful maps, and new features under development. Separate JB4 Mobile app purchase also required.

JB4 FEATURES AND BENEFITS

• Power gains of up to 50hp to the wheels on a stock vehicle
• Improves 0-60 times and 1/4 mile times
• The JB4 offers a lot more performance, functionality, and safety than your average performance chip
• Quick Plug & Play Installation
• Includes the rugged JB4 billet aluminum enclosure for protection
• CANbus OBDII integration offering unrivaled tuning features and performance
• Improved performance over non-integrated chip tunes
• Runs as smoothly as stock, this is how your vehicle should have come from the factory
• Compatible with all driving modes
• Fuel economy unchanged during normal driving
• Compatible with JB4 Mobile for smartphone logging, tuning changes, and adjustment
• 91 octane fuel or better required for performance gains
• Ethanol (E85) compatible tuning maps
• Able to read/delete fault codes
• Not VIN locked and can be removed without a trace and resold down the road
• Made in the USA
• Free USA Shipping
• 5 year warranty

If your BMW has a B38/B46/B48/B58 engine and you don’t see your exact model on the list below please email us.

APPLICATIONS

Note: If your BMW has a B38/B46/B48/B58 engine and you don’t see your exact model on the list below please email us.

BMW 1 Series
• 2019+ F40 B48 M135i
• 2019+ F40 B38 M118i
• 2015+ F20/F21 B58 M140i
• 2016+ F20/F21 B48 120i, 125i
• 2015+ F20/F21 B38 116i
• 2015+ F20/F21 B38 118i

BMW 2 Series
• 2016+ F22 F23 B58 M240i/iX
• 2017+ F22 F23 B48 230i/iX
• 2017+ F22 F23 B48 225i/iX
• 2017+ F22 F23 B46 220i/iX
• 2015+ F22/F23 B38 218i
• 2015+ F45/F46 B38 216i Active tourer and GT
• 2014+ F45/F46 B38 218i, 220i Active tourer and GT
• 2019+ F44 M235i/iX

BMW 3 Series
• 2020+ G20 B58 M340i/M340iX
• 2019+ G20 B48 330i/330iX/330e
• 2016-2019 F30 B58 340i/340iX
• 2016-2018 F30 B48 330i/330iX/330e
• 2016-2018 F30 B48 325i/325iX
• 2016-2018 F30 B46 320i/320iX
• 2016-2018 F30 B46 318i/318iX

BMW 4 Series
• 2016-2020 F32 F33 F36 B58 440i/440iX
• 2016-2020 F32 F33 F36 B48 430i/430iX
• 2016-2020 F32 F33 F36 B48 425i/425iX
• 2016-2020 F32 F33 F36 B46 420i/420iX
• 2016-2020 F32 F33 F36 B38 418i

BMW 5 Series
• 2017+ G30 B58 540i/540iX
• 2017+ G30 B46/B48 530i/530iX/530e

BMW 6 Series
• 2017+ G32 B58 640i/640iX

BMW 7 Series
2016+ G11/G12 B58 740i/740iX
2016+ G11/G12 730i/730iX

BMW 8 Series
2020+ G15/G14/G16 B58 840i/840iX/Gran Coupe

BMW X Series
• 2016+ B46/B48 X1
• 2018+ B46/B48 X2
• 2018+ G01 B48/B58 X3 2.0i/3.0i/M40i
• 2019+ G02 B48/B58 X4 2.0i/3.0i/M40i
• 2019+ G05 B58 X5 40i/40iX
• 2019+ G06 X6 40i
• 2019+ G07 B58 X7 40i

BMW Z4
• 2019+ BMW G29 B58 Z4 M40i
• 2019+ BMW G29 B46/B48 Z4 30i and Z4 20i



Stock vs. JB4 DYNO RESULTS

2020 B58 Powered BMW Z4 Dyno – 490 whp  with JB4 Map 5 and E40 mixture

VIDEOS

2017 BMW 230i with B48 Engine, JB4



2016 BMW 340i B58, JB4, 93 Octane, Map3



2016 BMW 340i B58, JB4, Pure Stage 1 Turbo, 93 Octane, WMI



2016 BMW 340i B58, JB4, 93 Octane, WMI
